HAA-17

HAA-17

Angled Abutment

Angled Abutment

Diameter

5.25

mm

Abutment length

mm

Total length

mm

Length

11.2

mm

Surface

No

Sterile

Cuff Height

1.6

mm

Self - tapping

Platform switching:

Download IFU
Log in to place an order

Product Details

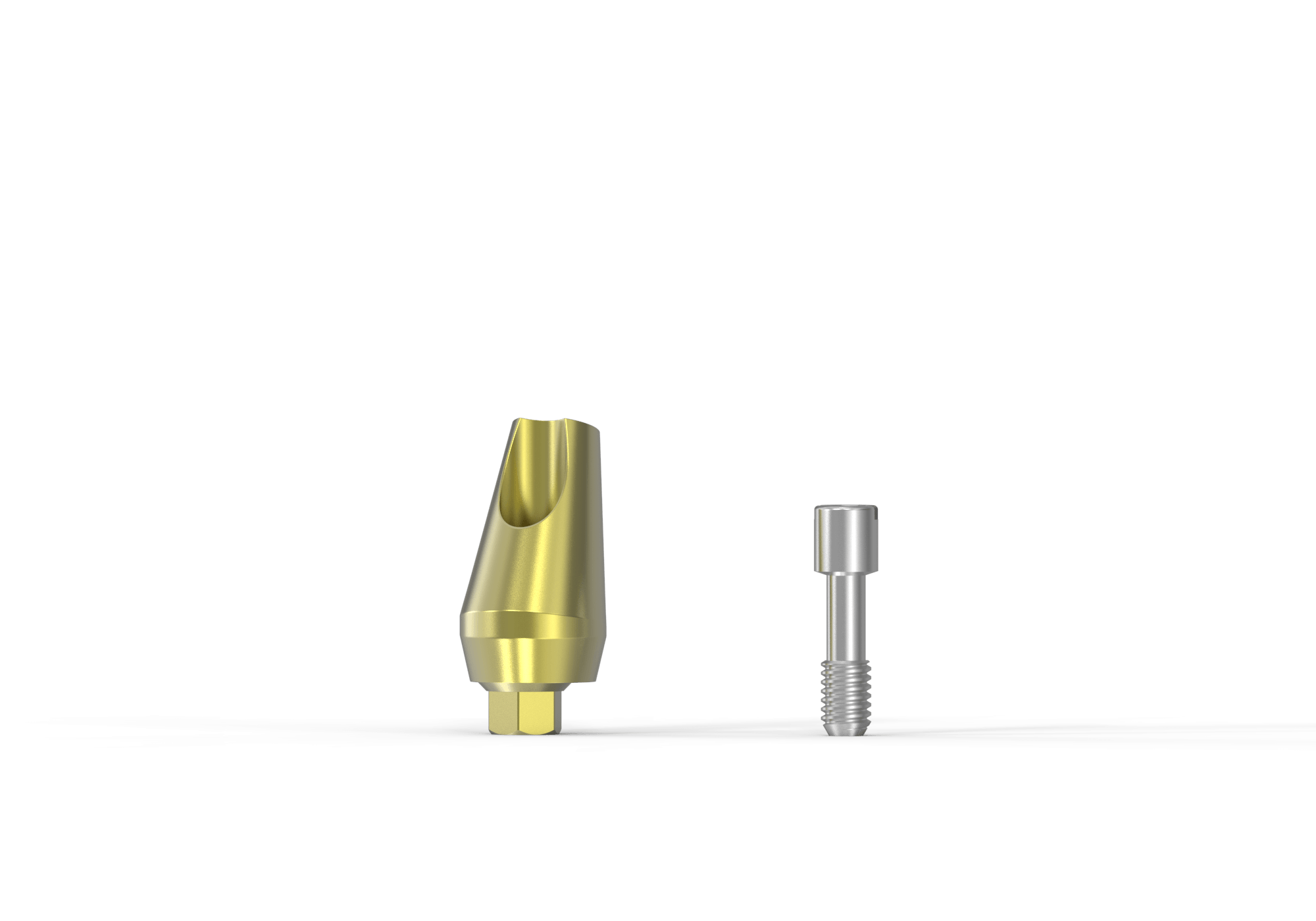

Used to fabricate cement-retained, single or multiple unit prostheses when there is an implant divergence angle greater than 30 degrees to adjacent implants or teeth. This abutment is also useful in the anterior maxilla region, where implant insertion angle is usually angled over 15 degrees to the prosthetic restoration angle. Packaged with Abutment Screw.

Technical Specifications

Reference Dimensions

A
Overall Length
11.2
mm
B
Body Diameter
5.25
mm
C
Tip Diameter
mm
C
Cuff Height
2
mm
D
Top Diameter
mm
E
Hex Width
2.42
mm
D
Surface Tx Length
mm
E
Coronal Microthread Length
mm
F
Thread Pitch
mm
G
Thread Depth
mm
H
Hex Width
mm
